Blind Flanges ASME B16.5 Manufacturers, Exporters & Suppliers in India.
304/304L Blind Flanges (BLRF), 310/310S Blind Flanges (BLRF), 316/316L Blind Flanges (BLRF), 317/317L Blind Flanges (BLRF), 321/321H Blind Flanges (BLRF), 347/347H Blind Flanges (BLRF), 446 Blind Flanges.
Stainless Steel, Alloy Steel, Carbon Steel, Duplex steel, Copper Nickel Alloy, Hastelloy, Titanium, Alloy 20, Monel & Inconel Blind Flanges.

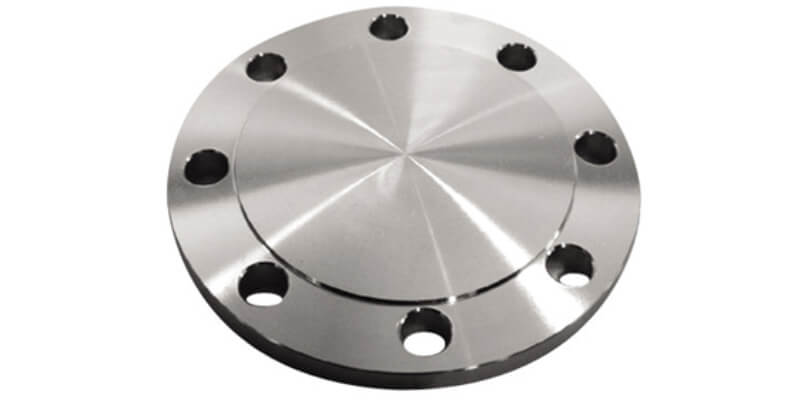

This is a flange without a bore and is used to shut off a piping system or vessel opening. It also permits Easy access to vessels or piping systems for inspection purposes. Blind flange can be supplied with or without hubs at the manufacturers option.
| Material of Construction | Standard | Grades |
| Stainless Steel Blind Flanges | ASTM A182 , A240 | F 304, 304L, 304H, 316, 316Ti, 316H, 316L, 316LN, 309S, 309H, 310S, 310H,317, 317L, 321, 321H, 347, 347H, 201, 202, 904L |
| Carbon Steel Blind Flanges | ASTM A105 | Gr. F42,46,52,56,60,65,70 |
| Alloy Steel Blind Flanges |
ASTM A182 | F1,F5,F9,F11,F22,F91 |
| Nickel Alloy Blind Flanges |
ASTM SB564, SB160, SB472, SB162 | Nickel 200 (UNS No. N02200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020), |
| Copper Alloys Blind Flanges | ASTM SB 61 , SB62 , SB151 , SB152 | UNS No. C 70600 (Cu-Ni 90/10), C 71500 (Cu-Ni 70/30), UNS No. C 10100, 10200, 10300, 10800, 12000, 12200, |
| Low Temperature Carbon Steel Blind Flanges | ASTM A350 | LF2 , LF3 |
| Duplex Steel Blind Flanges | ASTM A182, A240 | UNS F 44, F 45, F51, F 53, F 55, F 60, F 61 |
Dimensional Tolerances of Blind Flanges ASME B16.5
| Outside Diameter ≤ 24 = 1.6 mm | > 24 = ± 3.2 mm |
Inside Diameter not applicable |
| Diameter of Contact Face 1.6 mm Raised Face = ± 0.8 mm 6.35 mm Raised Face, Tongue & Groove / Male-Female = ± 0.4 mm |
Outside Diameter of Hub ≤ 12 = + 2.4 mm / – 1.6 mm | ≥ 14 = ± 3.2 mm |
| Diameter of Counterbore not applicable |
Drilling Bolt Circle = 1.6 mm | Bolt Hole Spacing = ± 0.8 mm Eccentricity of Bolt Circle with Respect to Facing ≤ 2½ = 0.8 mm max. | ≥ 3 = 1.6 mm max. |
| Thickness ≤ 18 = + 3.2 mm / – 0 | ≥ 20 = + 4.8 mm / – 0 |
Length thru Hub ≤ 18 = + 3.2 mm / – 0.8 mm | ≥ 20 = + 4.8 mm / – 1.6 mm |
