MANUFACTURER OF STAINLESS STEEL 304L FLANGES | ASTM 182 STAINLESS STEEL 304L FLANGES | ASTM 240 STAINLESS STEEL 304L FLANGES | ANSI/ASME B16.1 STAINLESS STEEL 304L FLANGES
STAINLESS STEEL 304L FLANGES Exporter | STAINLESS STEEL 304L FLANGES Supplier | STAINLESS STEEL 304L FLANGES Manufacturer

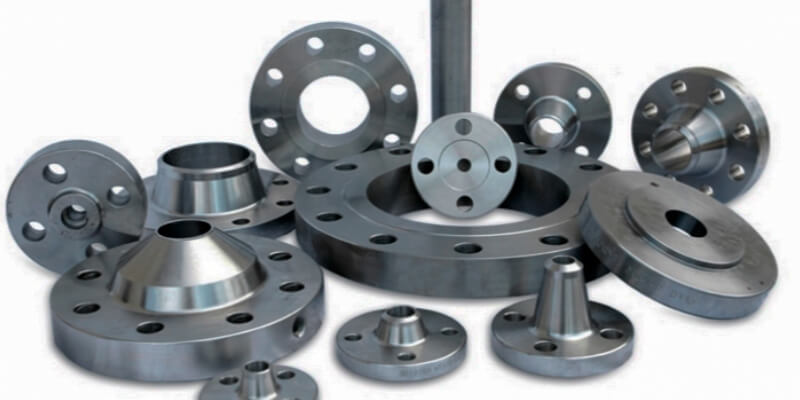

UNIFLEX INDIA are one of the principle producers and exporters of unrivalled quality STAINLESS STEEL 304L FLANGES, These STAINLESS STEEL 304L FLANGES in run of the typical particulars, which finds applications in high requesting for business undertakings and divisions, particularly high temperature and acidic organizations. Our STAINLESS STEEL 304L FLANGES are strong, tough and at standard with overall quality and wellbeing models. We are powerful in offering our reputed clients with biggest quality STAINLESS STEEL 304L FLANGES . Our offered STAINLESS STEEL 304L FLANGES are produced using high survey tough steel as the crude material to ensure tip top and whole deal usage. Further, these 304L FLANGESare comprehensively used as machined parts, pump shafts, valves, clasp and handles.
We exports Stainless Steel 304L Forged Flanges, Stainless Steel 304L Blind Flanges, Stainless Steel 304L Reducing Flanges, Stainless Steel 304L Orifice Flanges, Stainless Steel 304L Socket Weld Flanges, Stainless Steel 304L Slip On Flanges, Stainless Steel 304L Flat Flanges, Stainless Steel 304L Lapped Joint Flanges, Stainless Steel 304L SWRF Flanges, Stainless Steel 304L Square Flanges, Stainless Steel 304L Threaded Flanges, Stainless Steel 304L Weld Neck Flanges Series A or B, Stainless Steel 304L WNRF Flanges, Stainless Steel 304L Expander Flanges, Stainless Steel 304L High Hub Blinds Flanges, Stainless Steel 304L Spectacle Blinds Flanges, Stainless Steel 304L Loose Flanges, Stainless Steel 304L RTJ Flanges, Stainless Steel 304L Screwed Flanges, Stainless Steel 304L Weld Neck Flanges, Stainless Steel 304L Flange Facing Type & Finish, Stainless Steel 304L SORF Flanges, Stainless Steel 304L Groove & Tongue Flanges, Stainless Steel 304L Long Neck Weld Flanges, Stainless Steel 304L Spades Ring Spacers Flanges, Stainless Steel 304L Ring Type Joint Flanges, Stainless Steel 304L Weldo / Nipo Flanges.
| Grade | UNS No | Old British | Euronorm | Swedish SS | Japanese JIS | ||
|---|---|---|---|---|---|---|---|
| BS | En | No | Name | ||||
| 304L | S30403 | 304S11 | – | 1.4306 | X2CrNi19-11 | 2352 | SUS 304L |
| These comparisons are approximate only. The list is intended as a comparison of functionally similar materials not as a schedule of contractual equivalents. If exact equivalents are needed original specifications must be consulted. | |||||||
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
|---|---|---|---|---|---|
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 304L | 485 | 170 | 40 | 92 | 201 |
| 304H also has a requirement for a grain size of ASTM No 7 or coarser. | |||||
| Designation | A 182 / A 240, SA 182 / SA 240 |
|---|---|
| Class | 150#, 300#, 400#, 625#, 900#, 1500# & 2500# |
| Size | 1/2″ NB TO 48″ NB |
| Standards | ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings, ASTM, ASME Flanges, ANSI Flanges, DIN Flanges, EN Flanges, BS Flanges etc. |
| Grade | A 182 304L |
| Grade 304l | C | Mn | Si | P | S | Cr | Mo | Ni | N |
|---|---|---|---|---|---|---|---|---|---|
| min. | – | – | – | – | – | 18.0 | – | 8.0 | – |
| max. | 0.030 | 2.0 | 0.75 | 0.045 | 0.030 | 20.0 | – | 12.0 | 0.10 |
| Density (kg/m3) | Elastic Modulus (GPa) | Mean Coefficient of Thermal Expansion (m/m/0C) | Thermal Conductivity (W/m.K) | Specific Heat 0-1000C (J/kg.K) | Electrical Resistivity (n.m) | |||
|---|---|---|---|---|---|---|---|---|
| 0-1000C | 0-3150C | 0-5380C | at 1000C | at 5000C | ||||
| 8000 | 193 | 17.2 | 17.8 | 18.4 | 16.2 | 21.5 | 500 | 720 |
